Factory direct sale high quality woodworking two-component epoxy resin structural adhesive

FOB Reference Price:Get Latest Price
US $5.5-6 / Kilograms | 1 Kilogram/Kilograms structural adhesive (Min. Order)
Report Suspicious Activity
Overview
Quick Details
CAS No.:
-
Other Names:
-
MF:
-
EINECS No.:
-
Place of Origin:
Beijing, China (Mainland)
Classification:
Double Components Adhesives
Main Raw Material:
Epoxy
Usage:
Construction, Woodworking
Brand Name:
Hbond
Model Number:
Hbond-320
Type:
Structural epoxy adhesive
Product name:
Structural adhesive
Color:
Transparent,brown,light brown
Shelf life:
1 year in original unopened container
Store:
Dry at 5°-30°C
Supply Ability
Supply Ability:
2000 Kilogram/Kilograms per Month structural adhesive
Packaging & Delivery

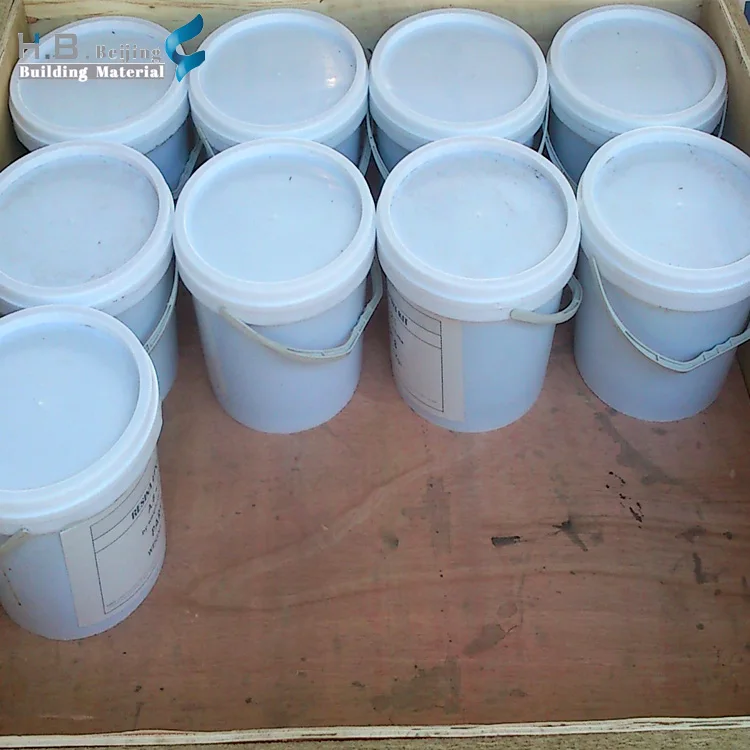

Packaging Details
Plastic barrel package or as each customer required. Neutral packing,
Port
Tianjin
Lead Time :
By T/T, 30%T/T, The balanced L/C. or The balance before delivery

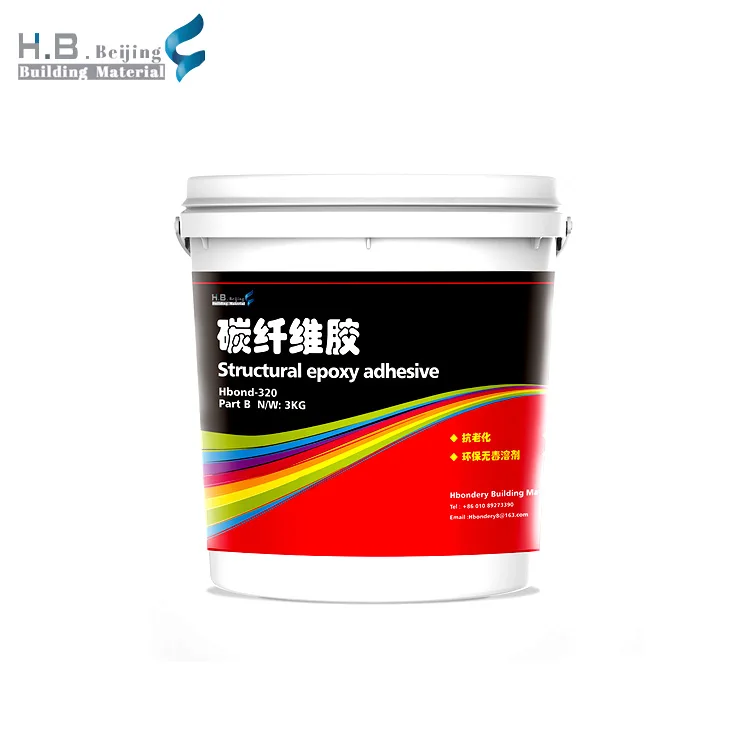

Hbond-320 Structural epoxy adhesive:

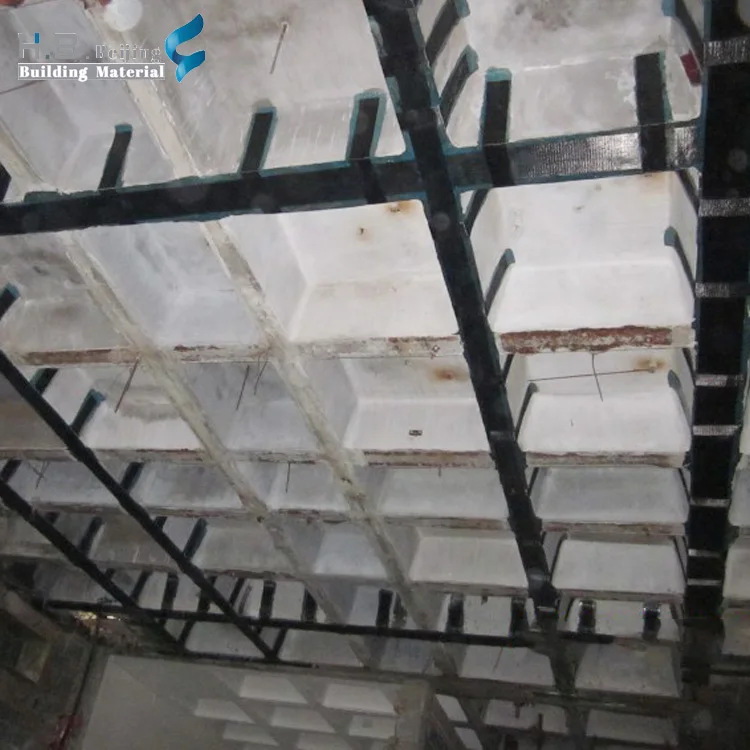

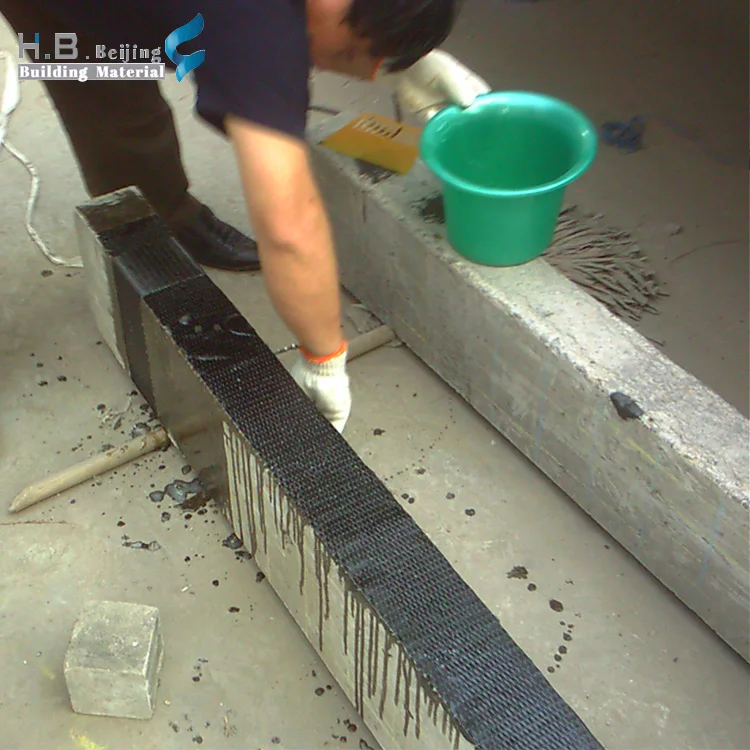

Hbond-320 is a solvent-free, thixotropic, two-component epoxy resin adhesive that has been specially developed for bonding laminates CKF and carbon fabric,The material characteristics of the fresh and hardened adhesive are designed specifically to satisfy the special requirements of structural component reinforcement system. suitable for carbon fiber, glass fiber and other fiber sheet.



Technical data:

Part

A Part ;B Part

Test result

ratio

A:B=2:1



Density (g / cm3) (at 23°C)

1,65 -1,80 g/cm³



Operable time at 20°C

~30 Mins



Compressive Strength(Mpa)

≥70.0 (GB50367-2006)

74 Mpa

bond strength(Mpa)

≥50.0 (GB50367-2006)

59 Mpa

Shear Strength (Mpa)

≥20.0 (GB50367-2006)



E-modulus (Mpa)

≥2500Mpa



Adhesive tensile strength(Mpa)

≥3 Mpa

on concrete; 3 days; 20°C

≥3 Mpa

on carbon laminate

≥2 Mpa

on leveling mortar

≥14 Mpa

steel on steel (without Primer)



Features:

Ready-to-use, convenient pot life.

High adhesive strength and bond strength.

Thixotropic, so does not run or drip, solvent-free.

Hardens with minimum shrinkage.

High mechanical strength.



Mixing ratio:

Part A : part B = 2 : 1 by weight or volume When using bulk material the exact mixing ratio must be safeguarded by

accurately weighing and dosing each component.



Availability:

20kg and 10 kg (A+B) units



Storage:

Components A ,B may be stored for 1 year

Store between +5° C and +25° C

Homogenise before use; slowly warm up and homogenise frozen or super-cooled material
