China manufacturer supply fast cure m8 to m30 foundation stainless steel chemical anchor

FOB Reference Price:Get Latest Price
US $0.55-6.2 / Pieces | 400 Piece/Pieces chemical anchor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Hbond
Model Number:
Hbond-50-M8
Type:
Other
Material:
Galvanized,stainless steel
Diameter:
M8
Length:
110mm
Capacity:
7.5-8.3 KN
Standard:
ISO
Product name:
Chemical anchor
Supply Ability
Supply Ability:
800000 Piece/Pieces per Month chemical anchor
Packaging & Delivery
Packaging Details
10 pcs/box,40 boxes/ctnpackage or as each customer required. Neutral packing ,export standard carton package
Port
Tianjin
Lead Time :
By T/T, 30%T/T, The balancee L/C.or The balance before delivery

_02

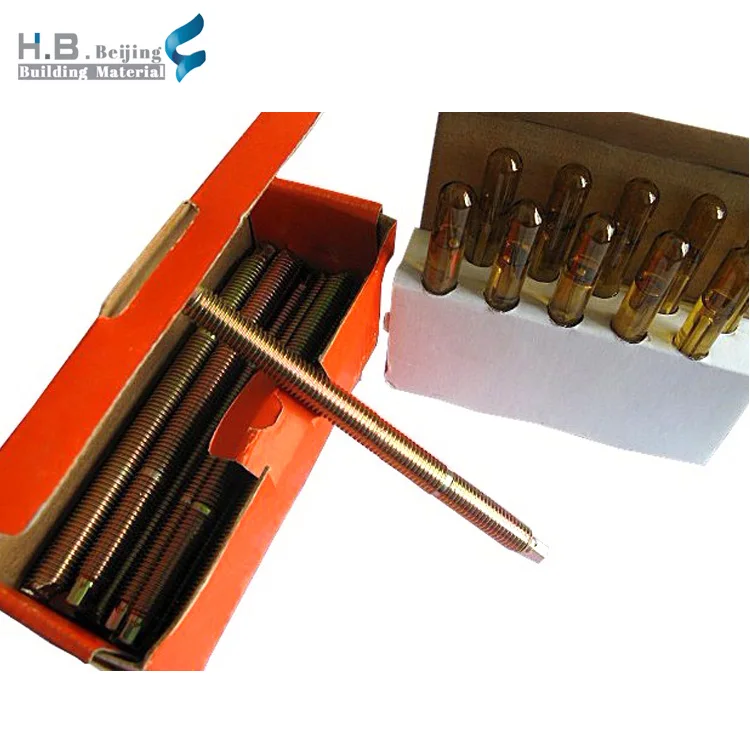

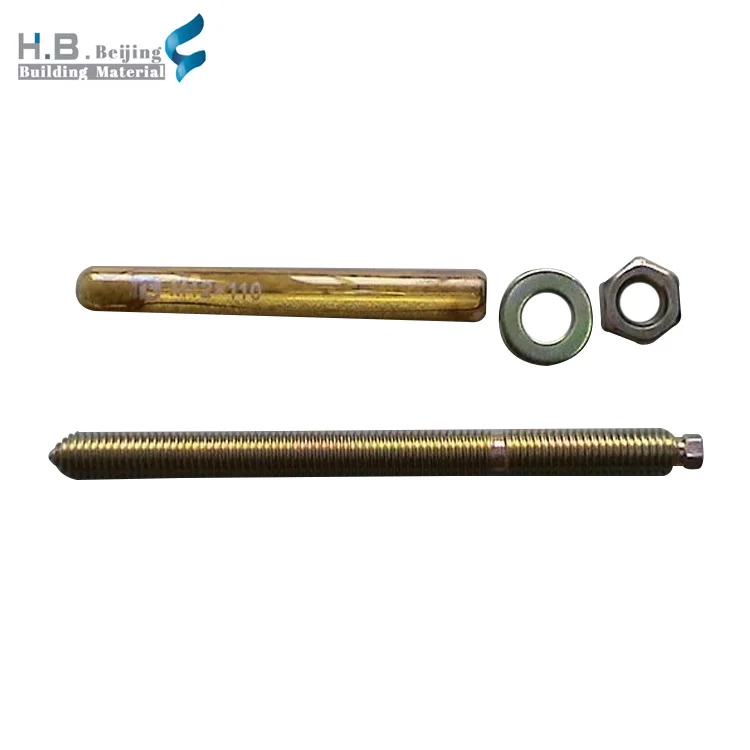

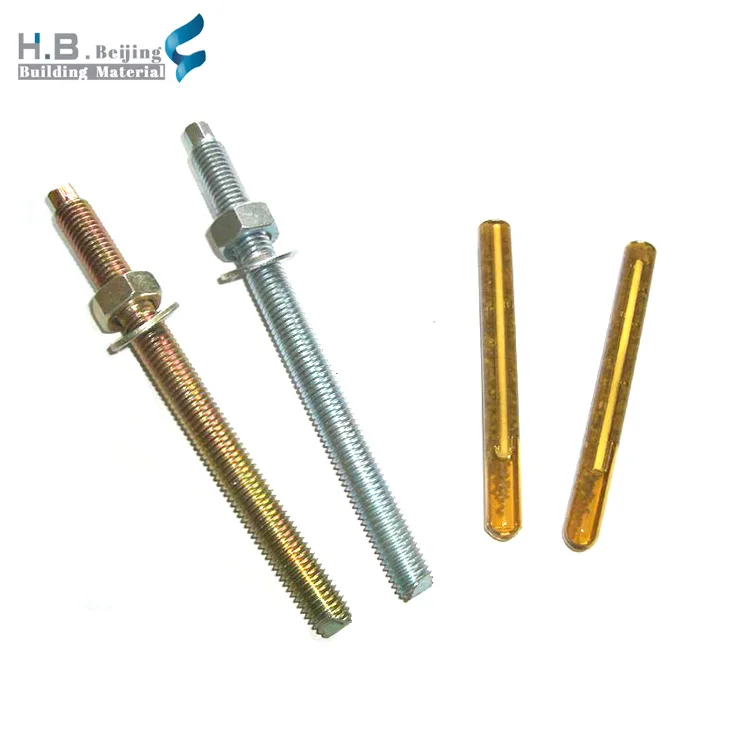

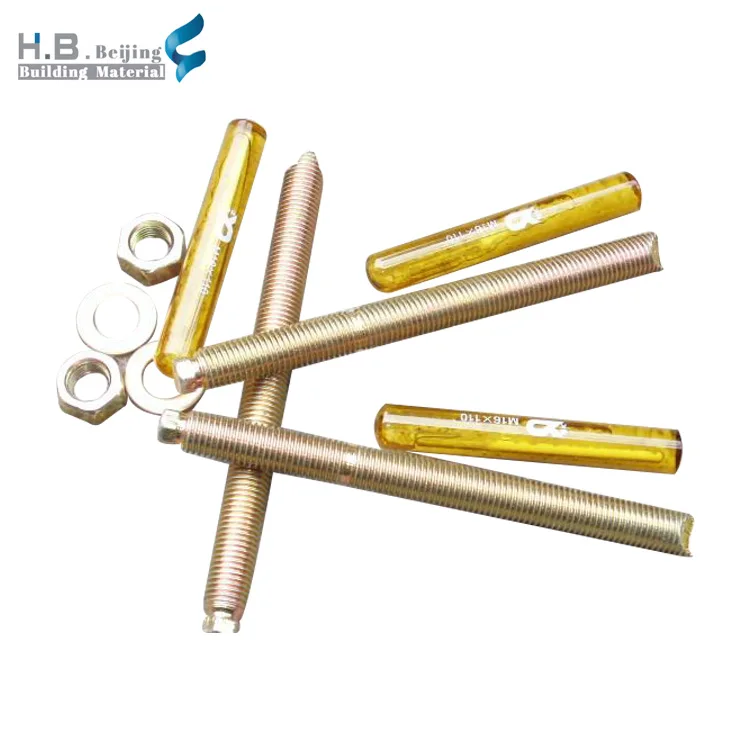

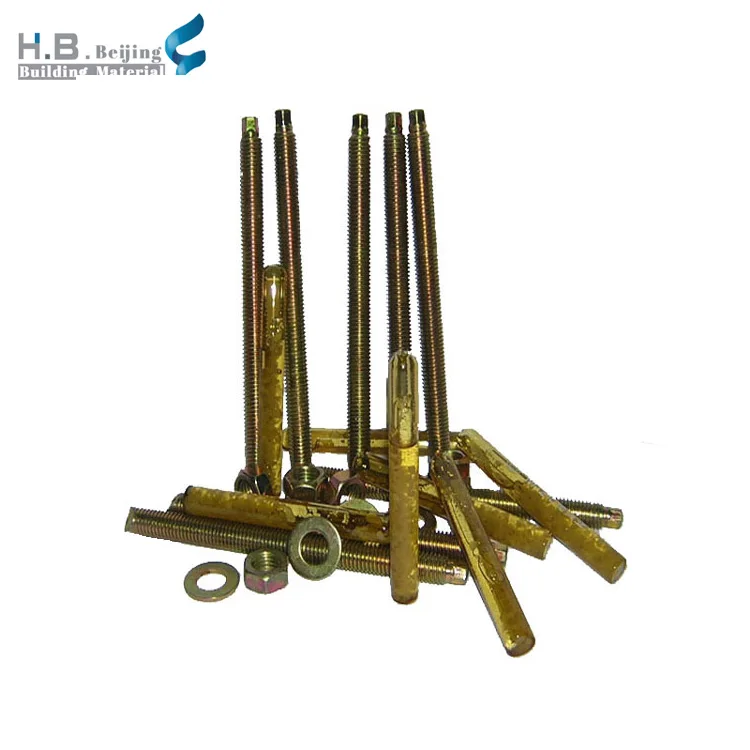

Hbond-50 vinylester glass capsule anchoring adhesive:

A two-component, high solids, vinylester-based adhesive contained within a glass capsule. The capsule is placed in the hole and the resin and initiator components are combined when the rod or rebar is driven to the bottom of the hole through the capsule





Model

M8

M10

M12

M16

M20

M24

M30

Diameter (mm)

M8

M10

M12

M16

M20

M24

M30

Length (mm)

110

130

160

190

260

300

380

Drilling diameter (mm)

10

12

14

18

25

28

35

Buried depth (mm)

80

90

110

125

170

210

280

Fixed object thickness (mm)

14

20

25

35

65

65

70

Min substrate thickness (mm)

130

140

160

175

220

260

330

Max torsion torque (Nm)

10

20

40

80

150

200

400

Hole depth can be increased as required to increase strength.



Single anchor design load (KN):

Model

M8

M10

M12

M16

M20

M24

M30

Pulling force

C30 concrete

5.8 grade galvanized screw

7.5

12.5

19

29

42.5

59.7

89

A4 stainless steel

7.5

12.5

19

29

42.5

59.7

----

Shear

C30 concrete

5.8 grade galvanized screw

7.7

12.1

17.7

33.0

51.4

74.2

117.8

A4 stainless steel

8.3

13.1

19.0

35.3

55.2

73.2

----



Average breaking load of a single anchor (KN):

Model

M8

M10

M12

M16

M20

M24

M30

Pulling force

C30 concrete

5.8 grade galvanized screw

18

31.8

45.7

72.6

110.6

155.3

240.7

A4 stainless steel

22.3

34.5

56.1

72.6

128.9

158.6

----

Shear

C30 concrete

5.8 grade galvanized screw

11.4

18.2

26.5

48.5

75.2

110

173.2

A4 stainless steel

15.4

24.3

35.3

65.8

102.9

105.6

----



Special feature:

Fast cure

No special tools required for use

Hammer-in or spin-in (if desired)

Pre-measured amounts for listed embedment and load - no waste

Capsules are bi-directional - either end can be inserted into the hole first



Use:

Anchoring threaded rod or rebar in solid base materials

Not for overhead installations



Shelf life:

Twelve months from date of manufacture in original packaging



Storage:

For maximum shelf life, keep cool (60° F - 90° F ) and in closed packaging. Exposing capsules to UV light sources will shorten shelf life. Capsules are fragile. Do not use capsules if they change color, become cloudy or are cracked.



Package:

Anchoring adhesive shall be a two-component vinylester based adhesive capsule-within-a-capsule system supplied in manufacturer's standard packaging.. glass capsule, ten or six pieces of a box
