Hbond-300 Crack repair epoxy:
A solvent-free, moisture-insensitive, two-component, 100% solids structural paste epoxy adhesive
Usage:

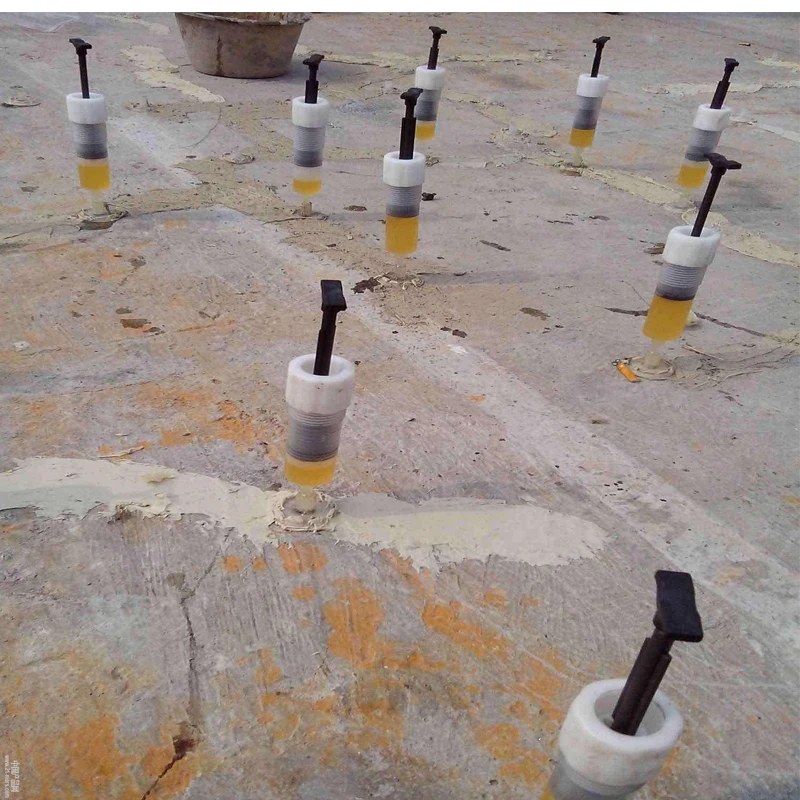

Cap sealing and port setting
Bonding irregular surfaces
Appearance:
Component A - white
Component B - grey
Shelf Life: 2 years in original unopened container
Storage Conditions: Store at 40-95°F (5-35°C). Precondition material to over 73°F (23°C)
Gel Time: 35 min. at 73°F (23°C)
Coverage:
1 gal./3.8 L of mixed epoxy yields 231 cu. in./3,746 cu. cm of epoxy.
Packaging:
1 gal./3.8 L units (two .5 gal. cans)
2 gal./7.6 L units (two 1 gal. cans)
Limitations:
Minimum substrate temperature is 40°F (5°C).
Do not thin. Solvents will prevent proper cure
To bond irregular surfacese:
Apply the mixed Hbond-300 Crack repair epoxy to the prepared substrates. Work into the substrate for positive adhesion. Secure or clamp the bonded surfaces firmly into place until the epoxy has cured. Glue line should not exceed 1/8 in./0.32 cm.
Part | Part A ; Part B |
ratio | A:B=3:1 |
Density (g / cm3) | A part 1.6 |
B part 1.5 | |
Shear bond strength(Mpa) | ≥40 25°C ,7 days |
Tensile Strength (Mpa) | ≥30 25°C ,7 days |
Open time | 30-45 mins 25°C |
concrete-concrete bond strength (Mpa) | ≥2.5 25°C ,7 days |
Package:
Part A 22.5 kg
Part B 7.5kg
Cleanup:
EQUIPMENT: Uncured material can be removed with Unitex CITRUS CLEANER or other approved solvent. Cured material can only be removed mechanically.
