Two-component Epoxy anchoring adhesive for steel bars and bolts in concrete

FOB Reference Price:Get Latest Price
US $6-7 / Pieces | 30 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
CAS No.:
25068-38-6
Other Names:
Epoxy injection system
MF:
-
EINECS No.:
-
Place of Origin:
Beijing, China (Mainland)
Classification:
Double Components Adhesives
Main Raw Material:
Epoxy resin
Usage:
Construction
Brand Name:
Hbond
Model Number:
Hbond-500
Type:
Epoxy adhesive
Application:
Injectabled construction Adhesive
Supply Ability
Supply Ability:
2000 Carton/Cartons per Month anchoring adhesive
Packaging & Delivery
Packaging Details
Carton ,Air bags or as each customer required .Neutral packing
Port
Tianjin
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(day) 10 To be negotiated

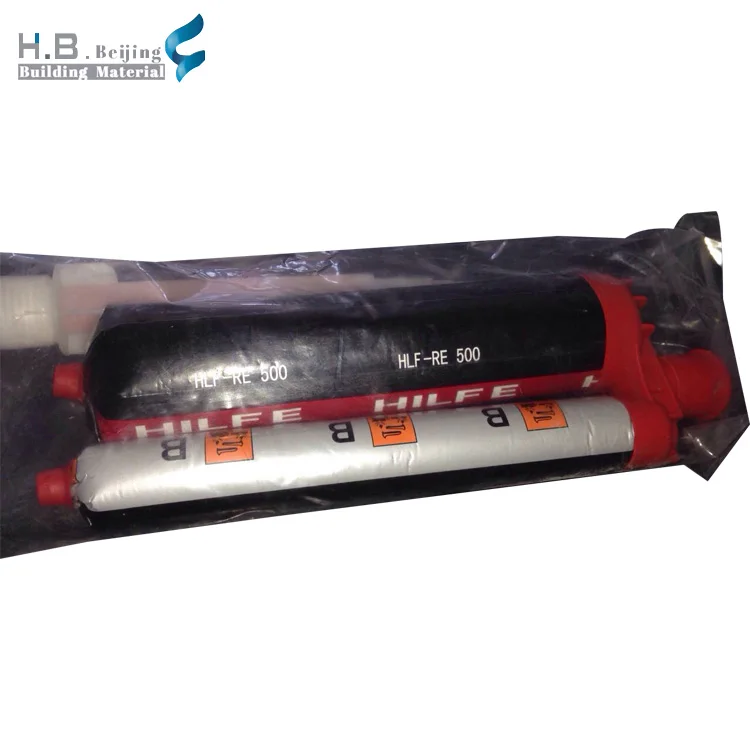

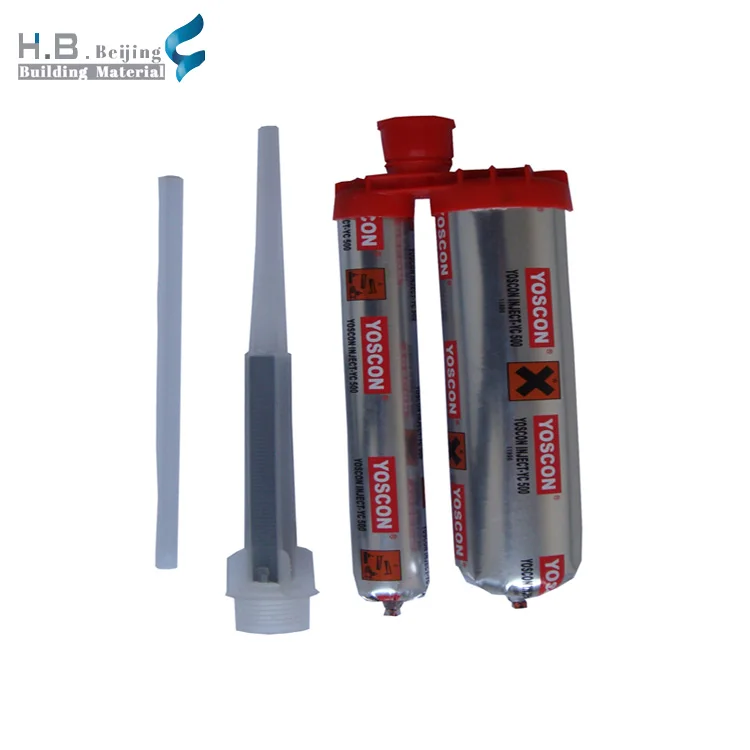

Hbond-500 Epoxy anchoring adhesive:

 Hbond-500 is a high strength, two part epoxy adhesive. consists of a mixing nozzle specifically designed for fastening into solid base materials such as concrete, grout, stone or solid masonry

so as to achieve the purpose of a fix. high performance for reinforcement bars and threaded rod explicated in concrete. Suitable especially for big diameters and deep embodiments due to slow curing.



Volume

330 ml  300 ml  500ml

Number of mixers included

1

For use with

Steel  concrete  rod  rebar ect

Anchor type

Carbon steel or stainless steel anchor

Content per can/cartridge

330 ml  300 ml  500ml

Base materials

Concrete ;steel

Material composition

Epoxy resin and hardner

Shelf life (@73°F/23°C and 50% relative humidity)

6 month(s)

Base material temperature - range

-5 °C - -40 °C

Rebar diameter range

8 -- 32 mm

Rod diameter range

8 mm - -39 mm

Required dispenser

MD 2500 ;ED 3500-A

Storage and transportation temperature - range

5 °C - -25 °C





Installation Specification Table for HAS Threaded Rods:

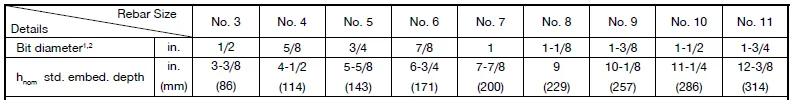

Installation Specification Table for Rebar in Concrete:



Benefits:

Superior bond performance

Use in diamond cored or pneumatic drilled holes Mixing tube provides proper mixing, eliminates measuring errors and minimizes waste

Contains no styrene; virtually odorless

Extended temperature range from 23°F to 104°F (–5°C to 40°C)

Excellent weathering resistance; Resistance against elevated temperatures



Usage:

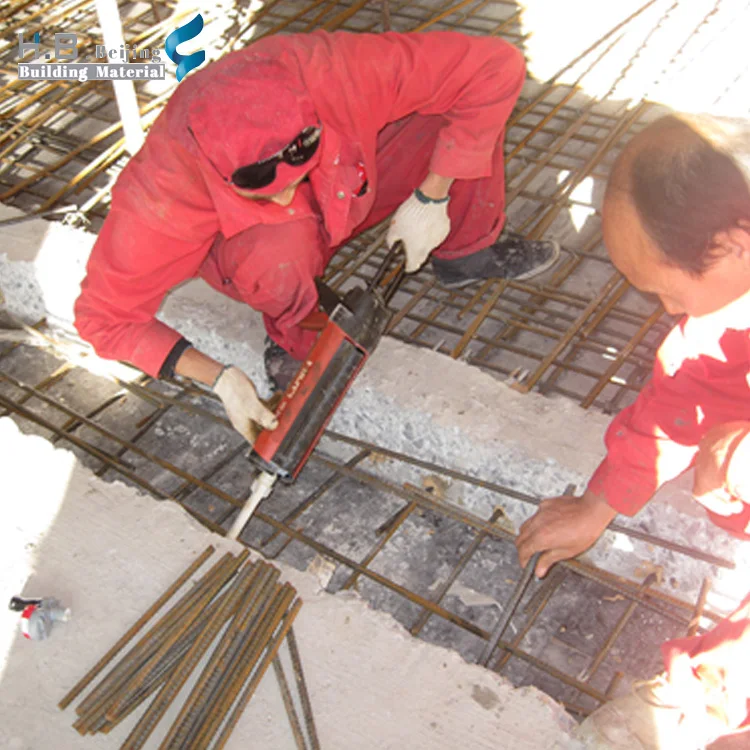

Planting of steel bars and bolts in concrete

Install curtain walls and stone materials

Reinforce building structures and anchorage

Basic fixing and installation.

Anchoring connection of steel structures and concrete structures

Reinforcement of railways, public roads, bridges, water conservancy facilities’ reconstruction and extension

Fix advertisement boards, tunnel pipe lines, Traffic equipment
